Nolathane
49162
Rear Axle Differential Mount - Rear Bushing Kit
*** CONTACT NOLATHANE ***
49162
Rear Axle Differential Mount - Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:

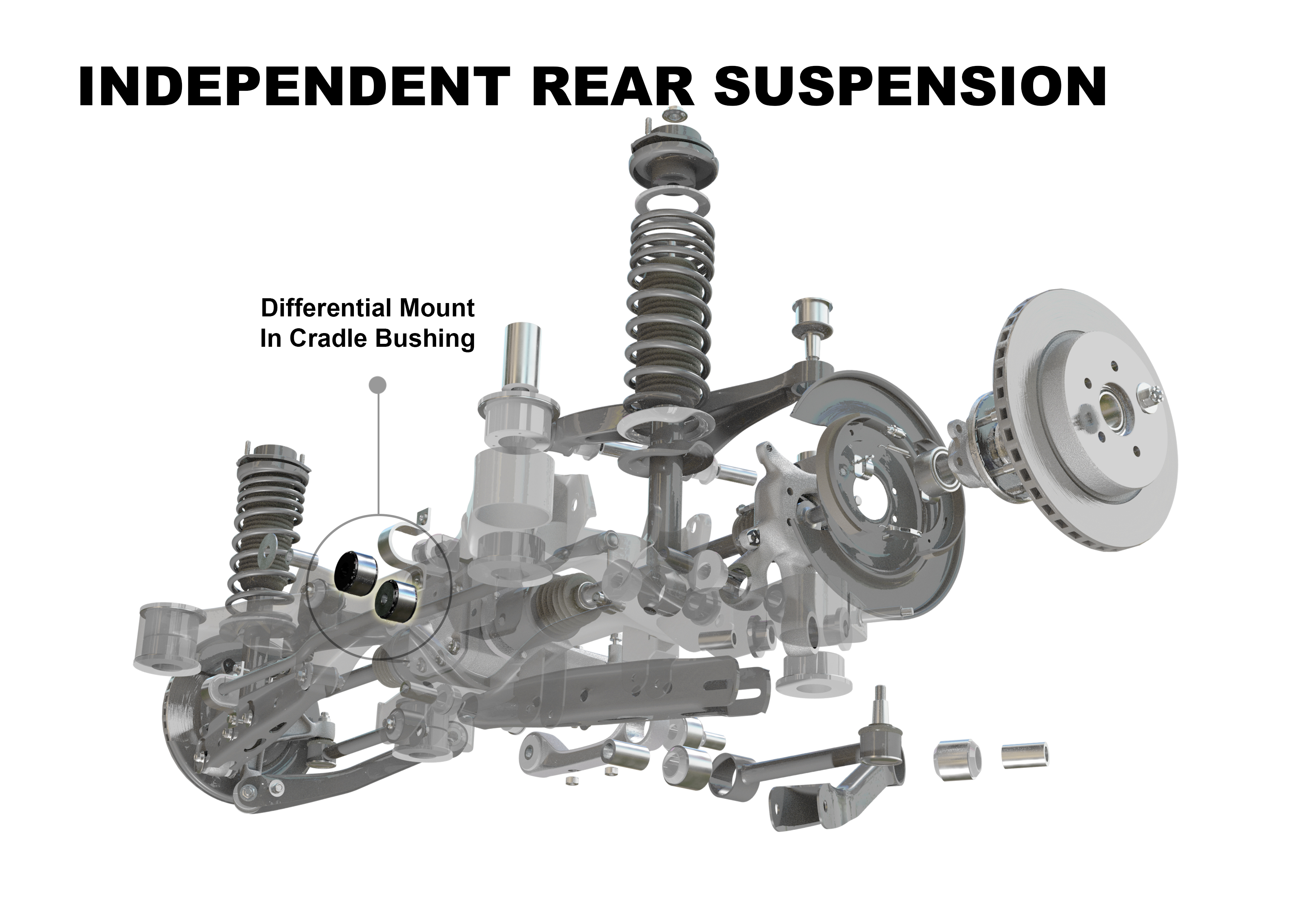

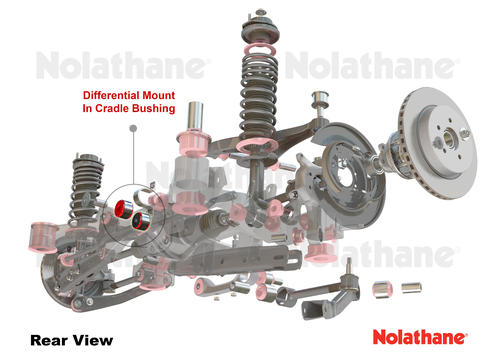

Reduce unwanted diff movement and maintain diff pinion angle with Nolathane diff mounts.
Kits Required: 1
Warranty: lifetime warranty

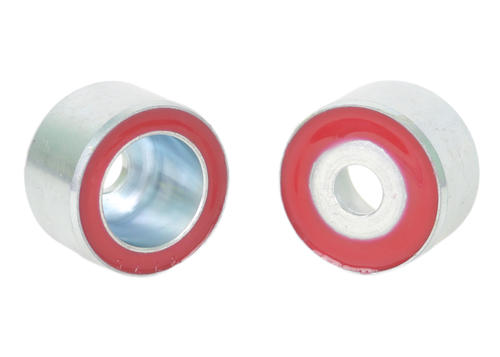

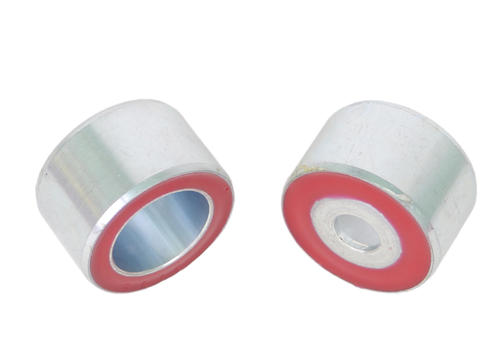

Kit Contents: 2 Shell Bushings
Install Guide: Download Here
Important Notes
  • Suits models with rear 2 bolt mounts
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

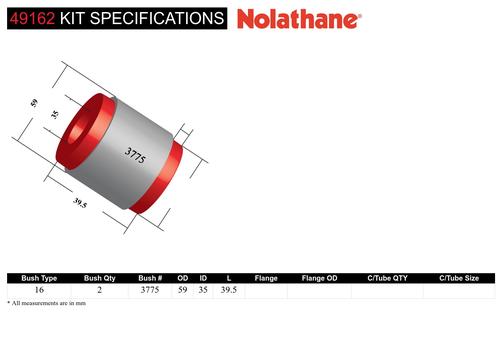

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 59 mm 35 mm 39.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 16 - Shell Without Flange Bushing
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 59 mm
ID (B) 35 mm
L (C) 39.5 mm
FL (D)
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 16 - Shell Without Flange Bushing
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Odd A 07 Odd A 10 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 07
Press Plate # (OUT) Odd A
Support Sleeve # 10
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Diff Solutions

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Diff Solutions

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
49162
Vehicle Applications
49162 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN 200SX 1993-2003 - 200SX S14, S15
NISSAN 300ZX 1989-1997 - 300ZX Z32
NISSAN SILVIA 1993-2003 - 200SX S14, S15
NISSAN SKYLINE 1989-1995 - SKYLINE R32 GTR, GTS-4 AWD
NISSAN SKYLINE 1989-1993 - SKYLINE R32 GTS, GTS-T RWD
NISSAN SKYLINE 1993-1999 - SKYLINE R33 GTR, GTS-4 AWD
NISSAN SKYLINE 1993-2000 - SKYLINE R33 GTS, GTS-T RWD
NISSAN SKYLINE 1998-2008 - SKYLINE R34 GTR, GT FOUR, GT-X FOUR AWD
NISSAN SKYLINE 1998-2006 - SKYLINE R34 GT, GT-T, GT-V, GT-X RWD
