Nolathane
49155
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
49155
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***

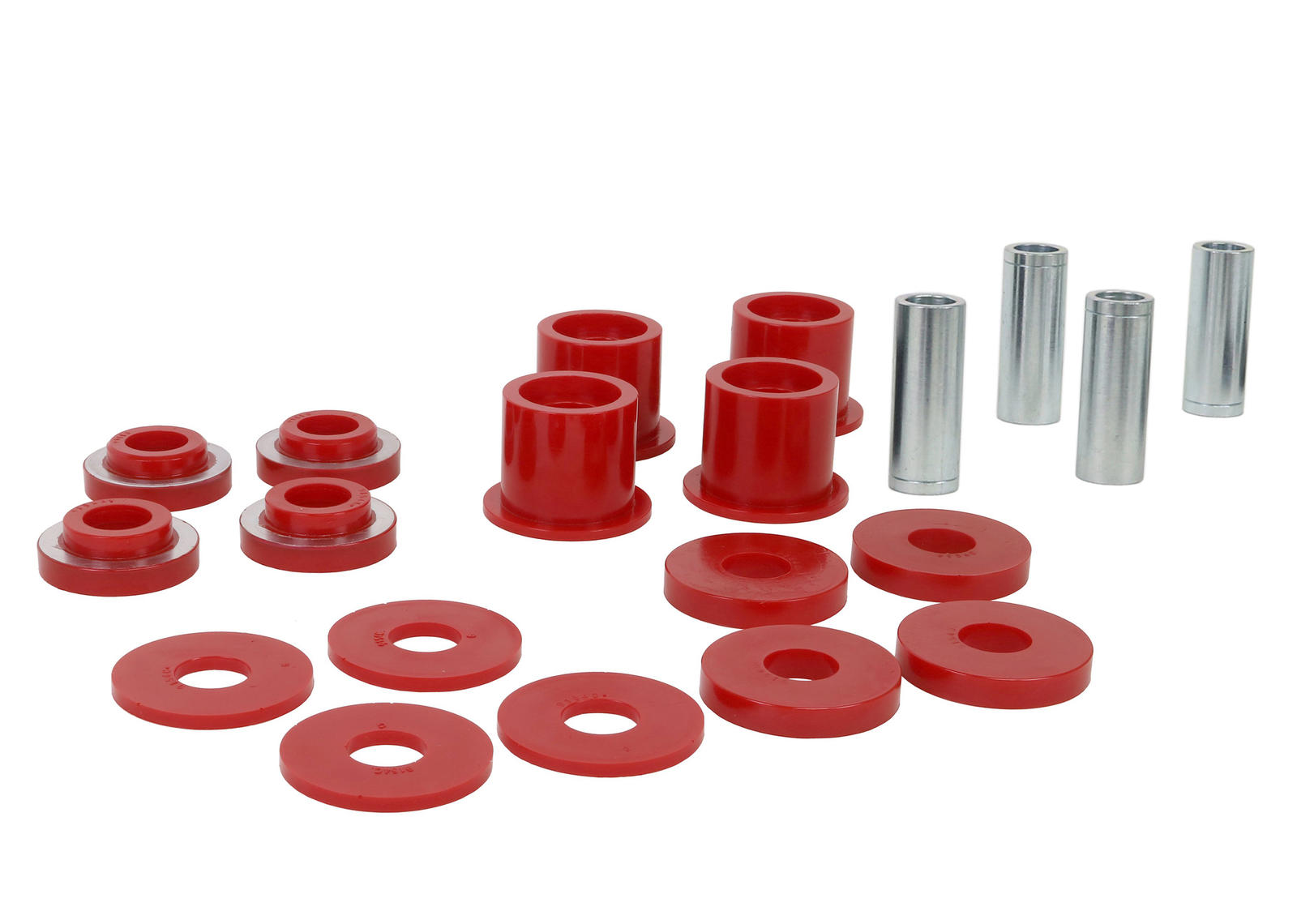

click to enlarge

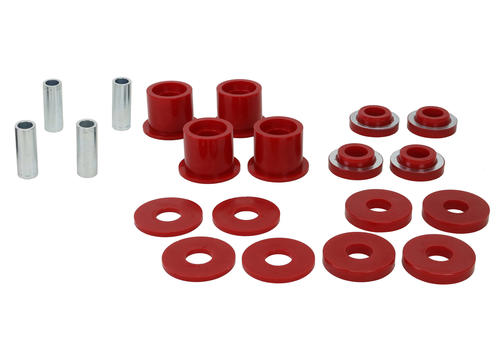

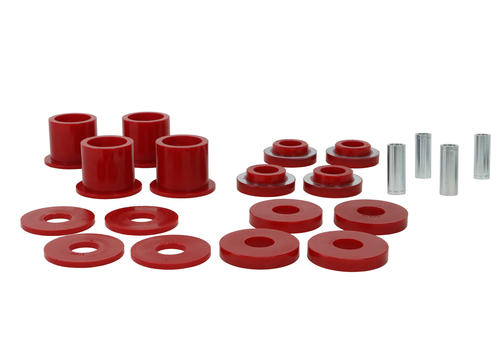

click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 12 Bushings, 4 Tubes
Install Guide: Download Here
Important Notes
  • Installs into original shell
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 16 47.8 mm 30 mm 23.7 mm 13.2 mm 70 mm 4 30x21.3x81 mm click here
7 16 80 mm 30.2 mm 6.2 mm 4 30x21.3x81 mm click here
1 16 62.8 mm 29.5 mm 59 mm 4.9 mm 59 mm 4 30x21.3x81 mm click here
7 16 80 mm 30.2 mm 13 mm 4 30x21.3x81 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 1 - Shackle Bushing
Type 7 - Pin Bush With & Without Spigot
Kit Specifications
Bush Type 1 7 1 7
Bush Qty 16 16 16 16
OD (A) 47.8 mm 80 mm 62.8 mm 80 mm
ID (B) 30 mm 30.2 mm 29.5 mm 30.2 mm
L (C) 23.7 mm 6.2 mm 59 mm 13 mm
FL (D) 13.2 mm 4.9 mm
FLOD (E) 70 mm 59 mm
C/Tube QTY 4 4 4 4
C/Tube Size 30x21.3x81 mm 30x21.3x81 mm 30x21.3x81 mm 30x21.3x81 mm
Similar Bushing Size click here click here click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 1 - Shackle Bushing
Type 7 - Pin Bush With & Without Spigot
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 04 Even A 07 Odd A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 04
Press Plate # (OUT) Even A
Support Sleeve # 07
Press Plate # Odd A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Larko Talks Subframe And Crossmember Bushings

Larko Talks Bushing Lubrication

How Hard Is Nolathane?
Videos

Larko Talks Subframe And Crossmember Bushings

Larko Talks Bushing Lubrication

How Hard Is Nolathane?
49155
Vehicle Applications
49155 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN SKYLINE 1989-1995 - SKYLINE R32 GTR, GTS-4 AWD
NISSAN SKYLINE 1993-1999 - SKYLINE R33 GTR, GTS-4 AWD
NISSAN SKYLINE 1998-2008 - SKYLINE R34 GTR, GT FOUR, GT-X FOUR AWD
