Nolathane
48213

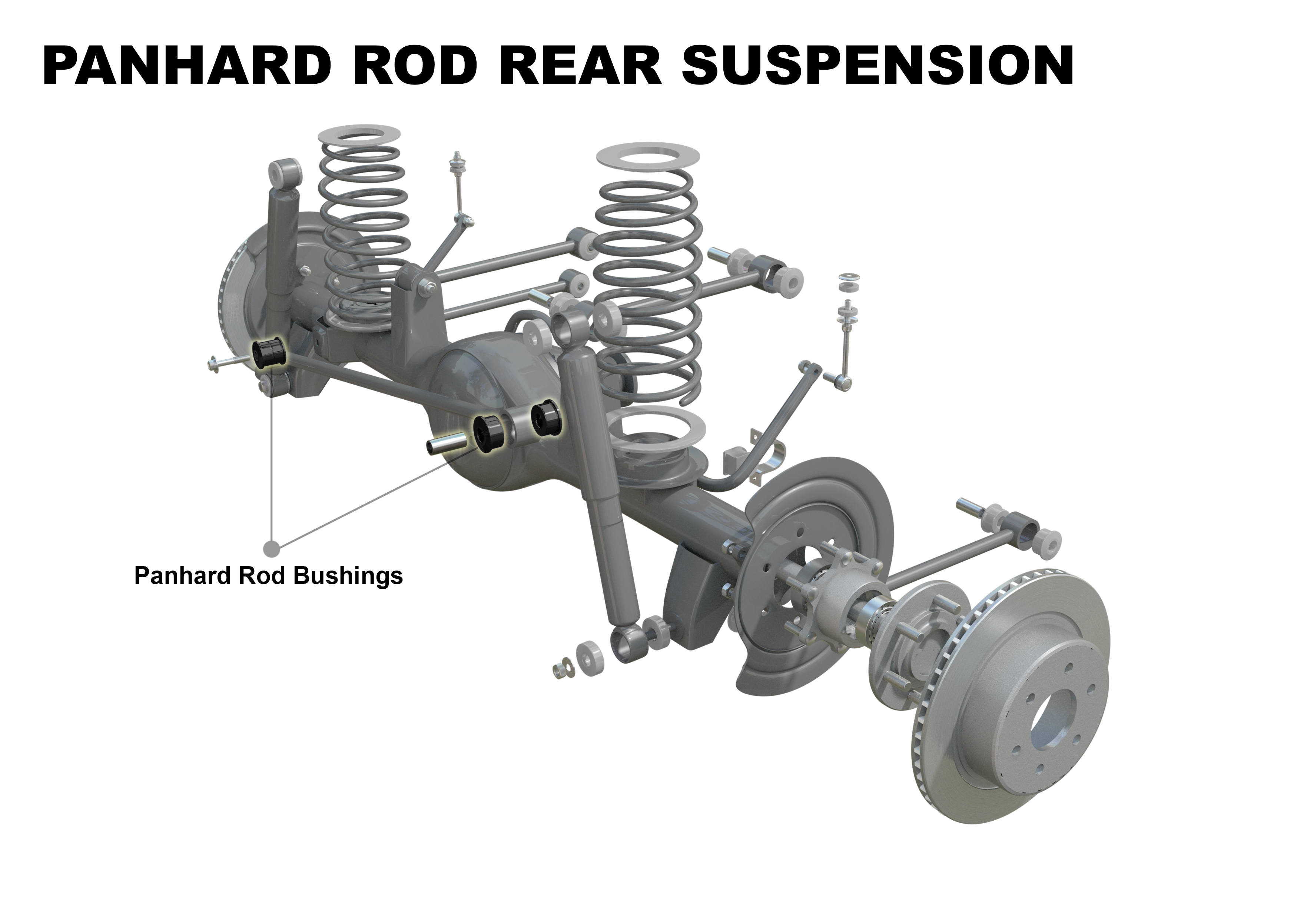

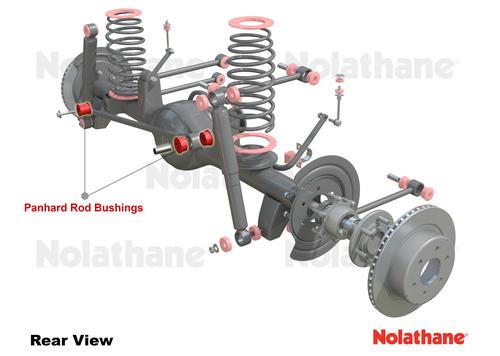

Rear Axle Panhard Rod - Bushing Kit
*** CONTACT NOLATHANE ***
48213
Rear Axle Panhard Rod - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Eliminate wheel shimmy and ensure accurate axle location with Nolathane superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.
Kits Required: 1
Warranty: lifetime warranty

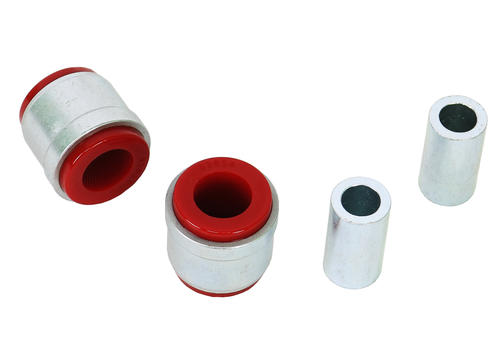

Kit Contents: 2 Shell Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
  • 39.7mm OD
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
17 2 AI=41.7 AII=39.7 mm 22.2 mm 40.6 mm 5 mm 41.7 mm 2 22.2x14.3x40.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 17 - Shell With Flange Bushing

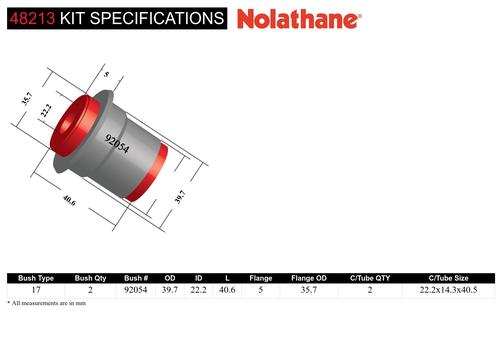

Kit Specifications
Bush Type 17
Bush Qty 2
OD (A) AI=41.7 AII=39.7 mm
ID (B) 22.2 mm
L (C) 40.6 mm
FL (D) 5 mm
FLOD (E) 41.7 mm
C/Tube QTY 2
C/Tube Size 22.2x14.3x40.5 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 17 - Shell With Flange Bushing
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
04 Even A 03 Odd A 06 Even A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve # (IN) 04
Press Plate # (IN) Even A
Press Sleeve # (OUT) 03
Press Plate # (OUT) Odd A
Support Sleeve # 06
Press Plate # Even A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
48213
Vehicle Applications
48213 is suitable for the following vehicles. Select a vehicle for specific fitment details:
JEEP WRANGLER 2007-2018 - WRANGLER JK
