48195
Front Axle Radius Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
48195
Front Axle Radius Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes

Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.
Kits Required: 1
Warranty: lifetime warranty

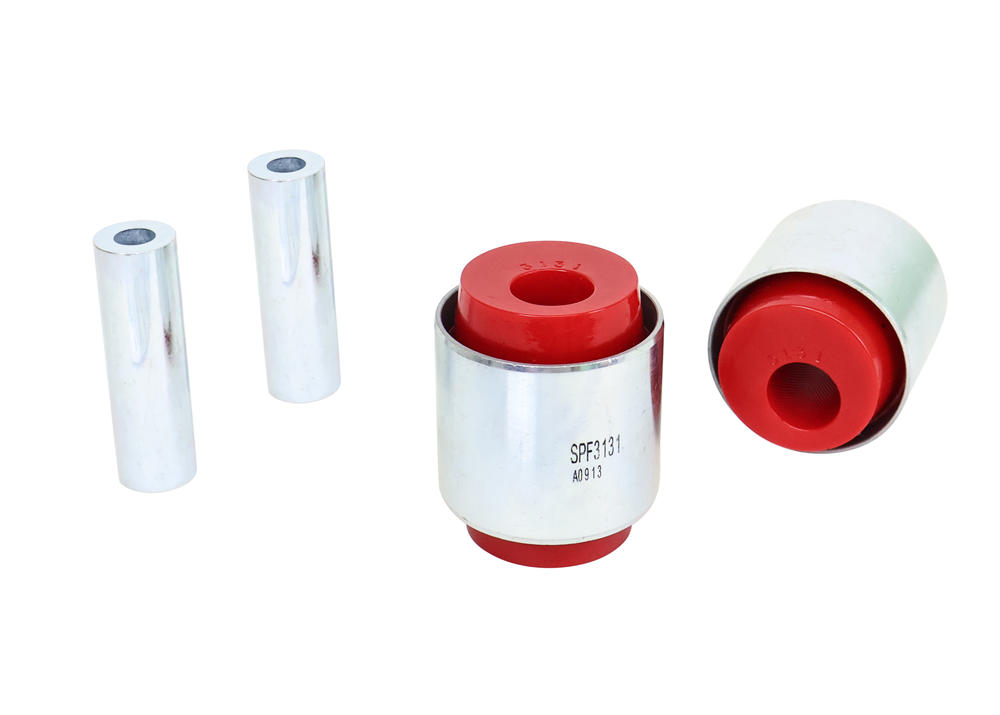

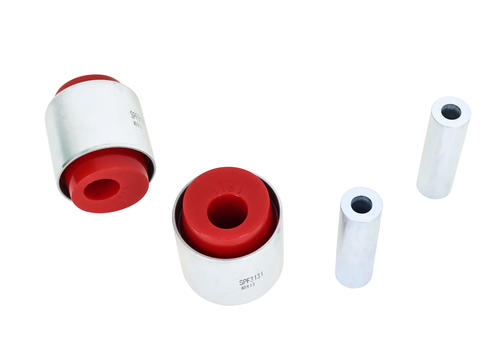

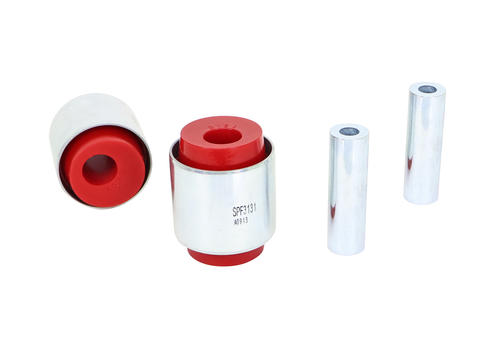

Kit Contents: 2 Shell Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
  • Performance Alignment

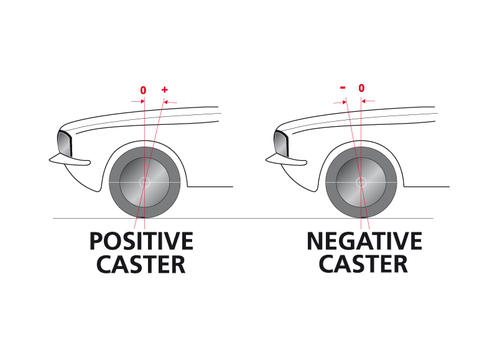

  • Adds +/- 0.5deg caster
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes

Contents
Kit Contains;

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 64.7 mm 22.7 mm 80 mm 12 mm 49 mm 2 24x12.5x80 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 16 - Shell Without Flange Bushing
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 64.7 mm
ID (B) 22.7 mm
L (C) 80 mm
FL (D) 12 mm
FLOD (E) 49 mm
C/Tube QTY 2
C/Tube Size 24x12.5x80 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 16 - Shell Without Flange Bushing
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
09 Odd A 08 Even A 11 Odd B M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 09
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 08
Press Plate # (OUT) Even A
Support Sleeve # 11
Press Plate # Odd B
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

Larko Talks Bushing Lubrication

How Hard Is Nolathane?
Videos

Uneven Tyre Wear

Larko Talks Bushing Lubrication

How Hard Is Nolathane?
48195
Vehicle Applications
48195 is suitable for the following vehicles. Select a vehicle for specific fitment details:
AUDI A4 1995-2001 - A4 8D B5 QUATTRO
AUDI A4 1994-2001 - A4 8D B5 FWD
AUDI A4 1997-2001 - S4 8D B5
AUDI A4 2000-2001 - RS4 8D B5
AUDI A4 2000-2005 - A4 8E, BH B6 QUATTRO
AUDI A4 2000-2005 - A4 8E, 8H B6 FWD
AUDI A4 2003-2005 - S4 8E, BH B6
AUDI A4 2004-2009 - A4 8E, 8H B7 QUATTRO
AUDI A4 2004-2009 - A4 8E, 8H B7 FWD
AUDI A4 2004-2009 - S4 8E, 8H B7
AUDI A4 2005-2008 - RS4 8E, 8H B7
AUDI A4 2007-2015 - A4 8K B8 FWD
AUDI A4 2007-2015 - A4 8K B8 QUATTRO
AUDI A6 1997-2005 - A6 4B C5 QUATTRO
AUDI A6 1997-2005 - A6 4B C5 FWD
AUDI A6 1999-2005 - S6 4B C5
AUDI A6 2002-2005 - RS6 4B C5
AUDI A6 2004-2011 - A6 4F C6 FWD
AUDI A6 2004-2011 - A6 4F C6 QUATTRO
AUDI A6 2006-2011 - S6 4F C6
AUDI A6 2008-2010 - RS6 4F C6
AUDI A6 Allroad 2006-2011 - A6 ALLROAD 4F C6
AUDI A8 1994-2005 - A8 4D D2 QUATTRO
AUDI A8 1994-2002 - A8 4D D2 FWD
AUDI A8 1996-2002 - S8 4D D2
AUDI ALLROAD 2000-2005 - ALLROAD 4B C5
SKODA SUPERB 2001-2008 - SUPERB 3U B5
VW PASSAT 1996-2000 - PASSAT MK4 B4 TYP 3B2, 3B5
VW PASSAT 2000-2005 - PASSAT MK5 B5 TYP 3B3, 3B6
