Nolathane
45894

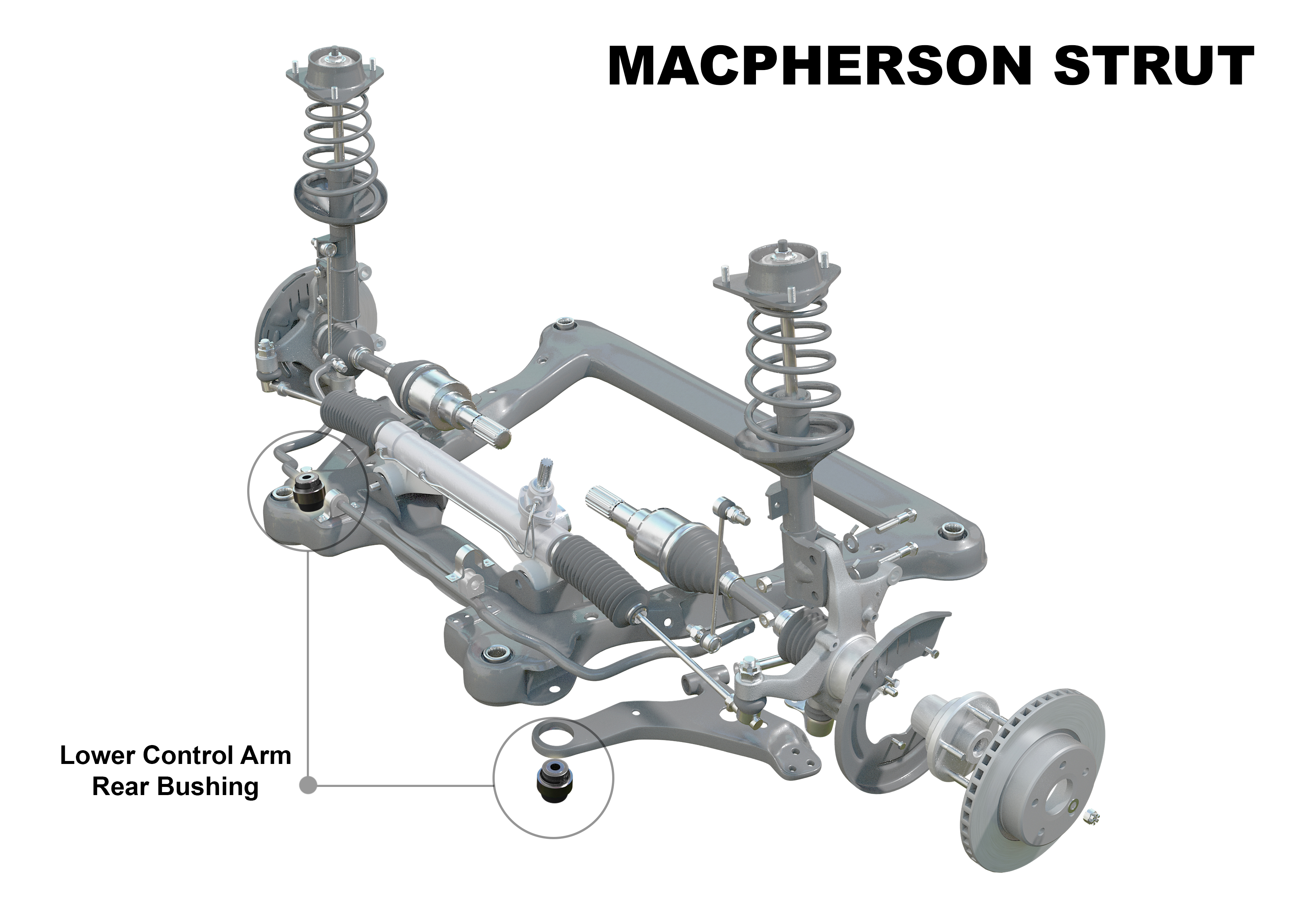

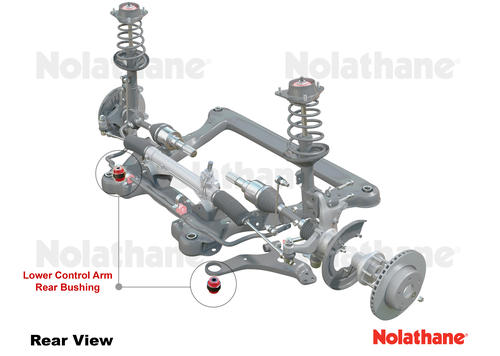

Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45894
Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty

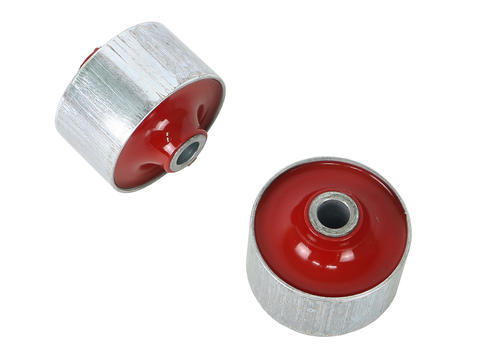

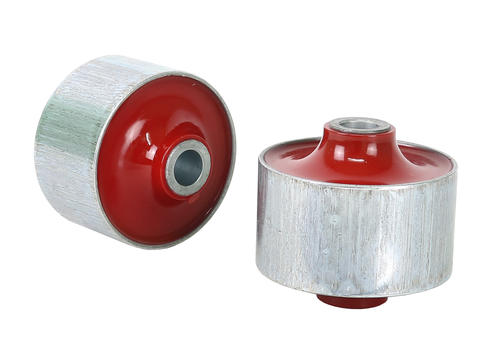

Kit Contents: 2 Bushings
Install Guide: Download Here
Important Notes
  • Standard Alignment
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 2 72.1 mm 14.3 mm 66.5 mm 13.8 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 16 - Shell Without Flange Bushing

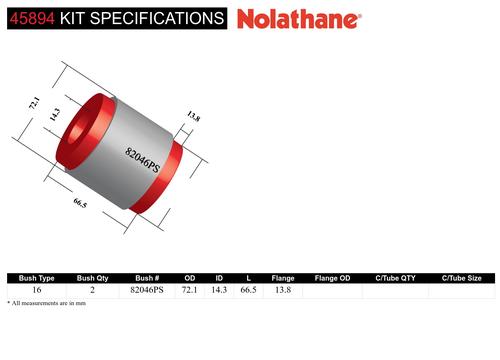

Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 72.1 mm
ID (B) 14.3 mm
L (C) 66.5 mm
FL (D) 13.8 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 16 - Shell Without Flange Bushing
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
10 Even A 09 Odd A 12 Even B M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) 10
Press Plate # (IN) Even A
Press Sleeve # (OUT) 09
Press Plate # (OUT) Odd A
Support Sleeve # 12
Press Plate # Even B
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?
Videos

Uneven Tyre Wear

How Hard Is Nolathane?
45894
Vehicle Applications
45894 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LEXUS ES 2018-ON - ES Z10, H10, 11
LEXUS NX 2021-ON - NX AZ20
LEXUS RX 2023-ON - RX ALA10, ALH10
TOYOTA ALPHARD / VELLFIRE 2023-ON - ALPHARD / VELLFIRE AH40
TOYOTA CAMRY 2017-2024 - CAMRY XV70
TOYOTA CAMRY 2024-ON - CAMRY XV80
TOYOTA HIGHLANDER 2019-ON - HIGHLANDER XU70
TOYOTA KLUGER 2021-ON - KLUGER XU70
TOYOTA RAV 4 2018-2025 - RAV 4 XA50, 52, 54
