Nolathane
41137
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
41137
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty

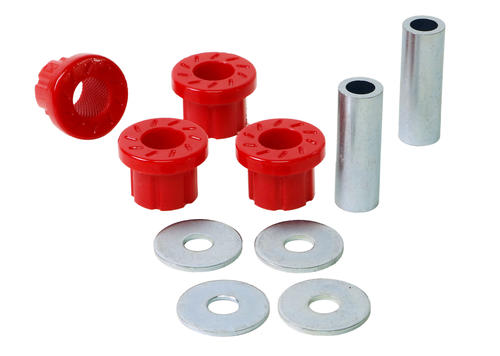

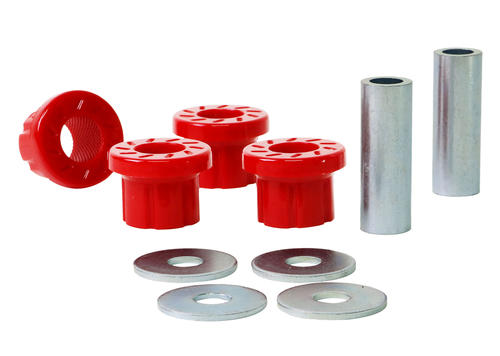

Kit Contents: 4 Bushings, 2 Tubes, 4 Washers
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 33.6 mm 22.1 mm 31.5 mm 7.8 mm 45.3 mm 2 22.2x14.3x65 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 1 - Shackle Bushing
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 33.6 mm
ID (B) 22.1 mm
L (C) 31.5 mm
FL (D) 7.8 mm
FLOD (E) 45.3 mm
C/Tube QTY 2
C/Tube Size 22.2x14.3x65 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 1 - Shackle Bushing
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Mark Larkham Talks Nolathane Steering Rack Bushings
Videos

How Hard Is Nolathane?

Mark Larkham Talks Nolathane Steering Rack Bushings
41137
Vehicle Applications
41137 is suitable for the following vehicles. Select a vehicle for specific fitment details:
TOYOTA FJ CRUISER 2009-2018 - FJ CRUISER GSJ15
TOYOTA FORTUNER 2015-ON - FORTUNER GUN156 4WD
TOYOTA HILUX 2015-2025 - HILUX GGN125R, GUN126R, 136R (N80) 4WD
TOYOTA HILUX 2015-2025 - HILUX GGN120R, GUN122R,123R, 136R, TGN121R (N80) 2WD
TOYOTA HILUX 2022-2025 - HILUX GUN126R ROGUE WIDE-BODY (N80) 4WD
TOYOTA HILUX 2022-2025 - HILUX GUN126R GR SPORT (N80) 4WD
TOYOTA LAND CRUISER PRADO 2009-2024 - LAND CRUISER PRADO 150 SERIES
