Nolathane
41135
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
41135
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

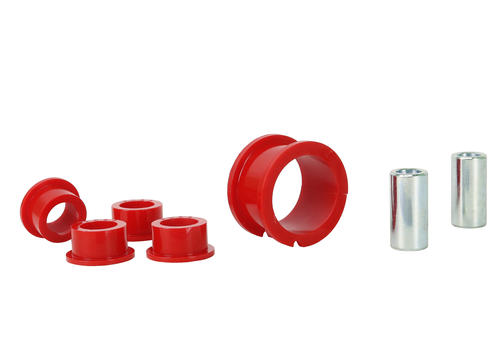

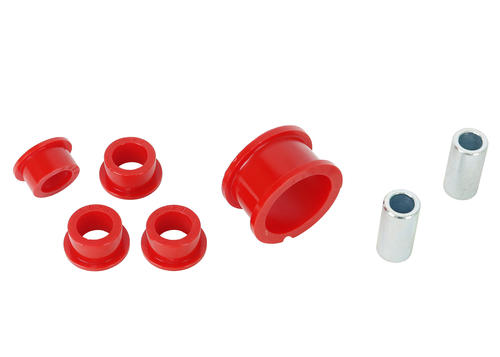

Vehicle Kit Contains:
Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 5 Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 5 36.7 mm 25.2 mm 21.8 mm 3 mm 45.2 mm 2 25.4x17x51 mm click here
10 5 61 mm 53.5 mm 40.5 mm 5 mm 70.85 mm 2 25.4x17x51 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 1 - Shackle Bushing
Type 10 - Cotton Reel With & Without Tapper Bushing
Kit Specifications
Bush Type 1 10
Bush Qty 5 5
OD (A) 36.7 mm 61 mm
ID (B) 25.2 mm 53.5 mm
L (C) 21.8 mm 40.5 mm
FL (D) 3 mm 5 mm
FLOD (E) 45.2 mm 70.85 mm
C/Tube QTY 2 2
C/Tube Size 25.4x17x51 mm 25.4x17x51 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 1 - Shackle Bushing
Type 10 - Cotton Reel With & Without Tapper Bushing
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Larko Talks Bushing Lubrication

How Hard Is Nolathane?

Mark Larkham Talks Nolathane Steering Rack Bushings
Videos

Larko Talks Bushing Lubrication

How Hard Is Nolathane?

Mark Larkham Talks Nolathane Steering Rack Bushings
41135
Vehicle Applications
41135 is suitable for the following vehicles. Select a vehicle for specific fitment details:
MERCEDES-BENZ X-CLASS 2017-2020 - X-CLASS X470 4MATIC
MERCEDES-BENZ X-CLASS 2017-2020 - X-CLASS X470 2WD
NISSAN NAVARA 2005-2015 - NAVARA D40 2WD
NISSAN NAVARA 2005-2015 - NAVARA D40 4WD
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 2WD (LEAF REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 4WD (LEAF REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 2WD (COIL REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 4WD (COIL REAR)
NISSAN NAVARA NP300 2015-ON - NAVARA D23, NP300 2WD (LEAF REAR)
NISSAN NAVARA NP300 2015-ON - NAVARA D23, NP300 4WD (LEAF REAR)
